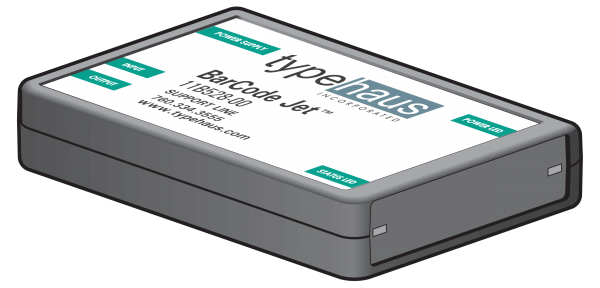

Unlike many barcode printing devices it is not printer model specific. The universal functionalities of the BarCodeJet allow it to print a large collection of barcodes, including USPS Intelligent Mail barcode, converting almost any laser or multi-function printer into a barcode printer with minimum set-up.
Providing the most complete and universal printer independent solution for SAP barcode printing, other commerical ERP systems and in-house applications, the BarCodeJet is a fully compatible SAP barcode printing solution. No programming is required to create high reliability barcode labels as well as documents containing control and cross-reference barcodes.
The BarCodeJet does the work of a barcode printer automatically, including checking incoming data, calculating checksums, writing text under or above the bars, and independently scaling barcodes both horizontally and vertically on the fly. By encoding the existing data directly from the print stream the BarCodeJet provides simplified support for all common one and two dimensional barcodes.
One Dimensional Barcodes
- 25 Matrix
- 25 Matrix + CHK
- Australia 37
- Australia 52-FF-MET
- Australia 67-FF-MET
- CODABAR
- Code 25 (2 of 5) interleaved
- Code 39 (3 of 9)
- Code 39 + mod 43CHK
- Code 39 encode space before data
- Code 39 extended for lowercase
- Code 39 extended + CHK
- Code 93
- Code 128 with auto-switch feature
- Code 128 A, B & C
- Code 39 + CHK encode space before data
- EAN/JAN-8 & EAN/JAN-8 +2
- EAN/JAN-8 +5
- EAN-128
- EAN/JAN-13 & EAN/JAN-13 +2
- EAN/JAN-13 +5
- German Postal 25 Leitcode 11 & 13
- Industrial 25 + CHK
- Interleaved 25 + CHK
- MSI Plessey + CHK 10 & CHK 11
- PostNet 9 & PostNet 5
- UCC-128
- UPC-A , UPC-A +2 & UPC-A +5
- UPC-E (UPC-E0 & UPC-E1)
- UPC-E +2 & UPC-E +5
- USPS Intelligent Mail®
- ZIP+4 PostNet 11
Additional Specifications
electrical
External power supply 110-220 VAC Input, 5 VDC @ 500 mA regulated
physical
Length: 4.25″ (108mm)
Width: 3.00″ (76mm)
Height: 1.00″ (25mm)
ethernet
10Base-T & 100Base-T
Full & half duplex
environmental
Operating Temperature: 0°C to 70°C
Storage Temperature: -65°C to 150°C
Relative Humidity: 95% max. (non-condensing)
